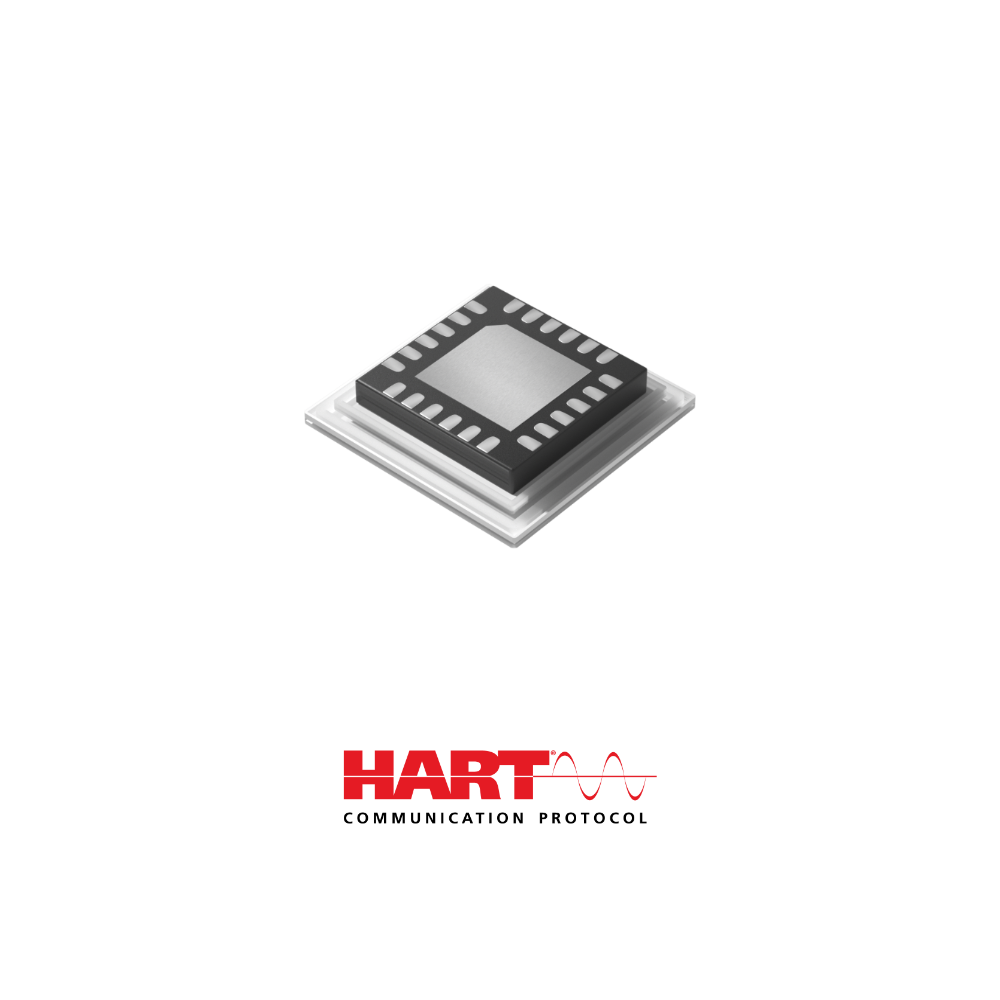

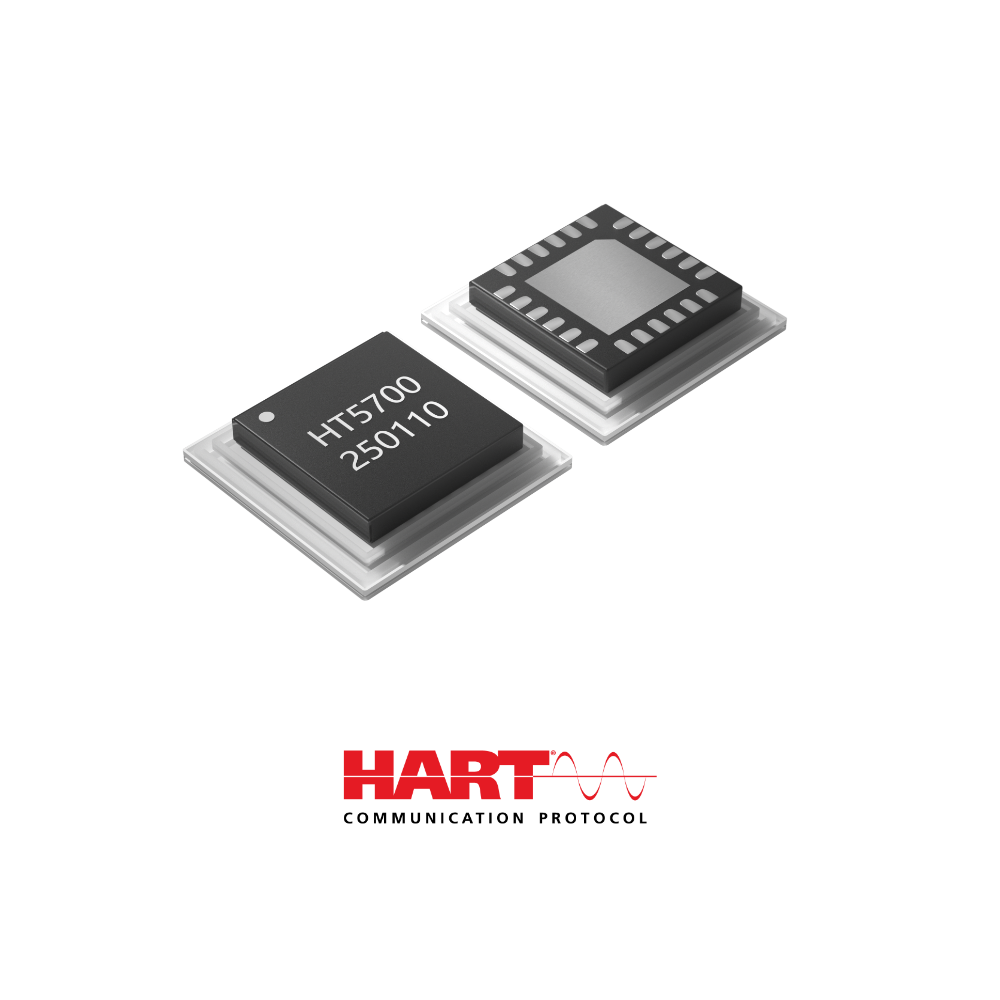

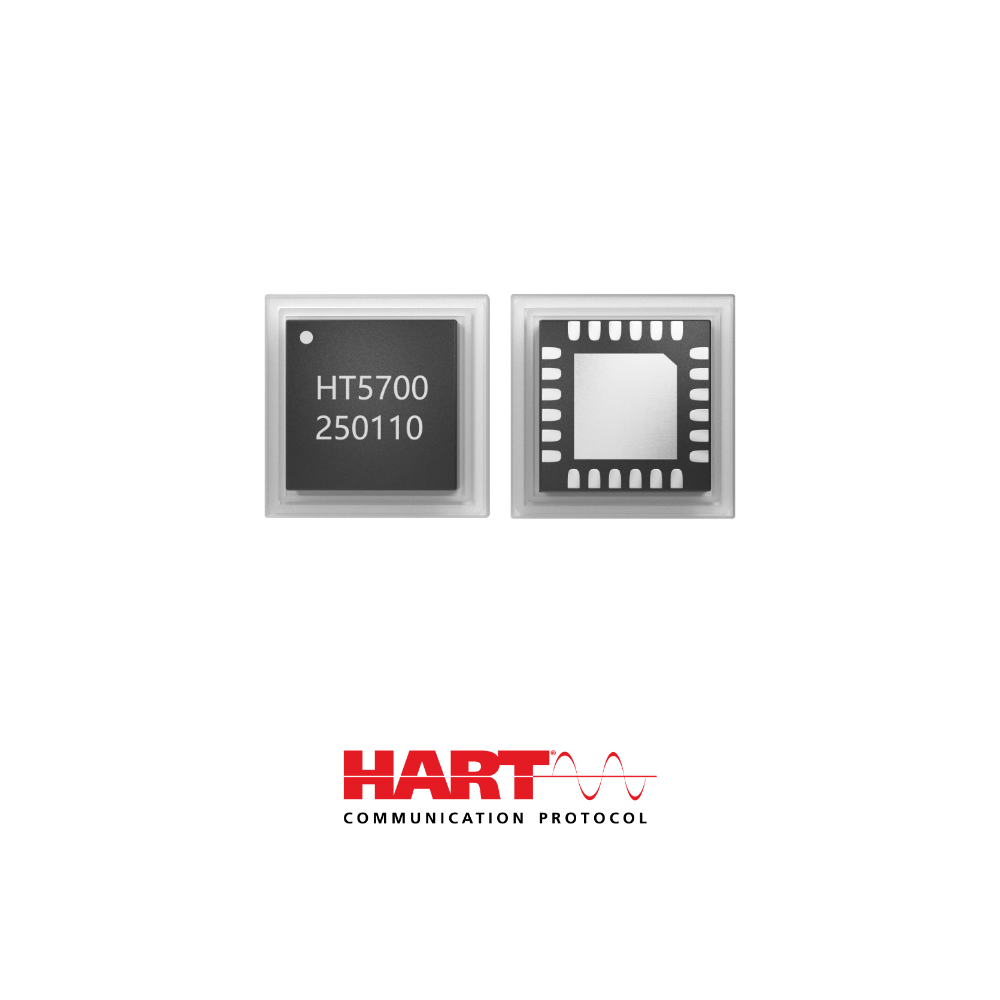

The HT5700-HART modem chip, with fully independent intellectual property rights and 100% domestic manufacture, is a low-power modem chip suitable for HART device development. It requires only a few external components to modulate and demodulate HART signals. The chip is pin-compatible with the AD5700 and requires no programming.
HT5700 Low Power HART Chip (Modem)：
1. Fully integrated FSK modem compliant with HART standards
2. HART output with drive capability
3. Internal integrated crystal oscillator to simplify circuit
4. Working temperature: -40℃~+125℃
5. Working current: <115u4 (3.3V)
6. Dimension: 4mmx4mm, encapsulation: LFCSP24
7. Fully compatible with Onsemi 4D5700, reducing material costs
Product Description
HT5700M Low Power HART Chip (Modem): is a single-chip HART communication solution designed for HART® FSK half-duplex modems and complies with the HART physical layer specification. The HT5700 integrates the necessary filtering, signal detection, modulation, demodulation, and signal generation functions, requiring minimal external components. The chip also features an integrated 0.5% accuracy oscillator, significantly reducing board space and making it an ideal choice for HART circuit designs.

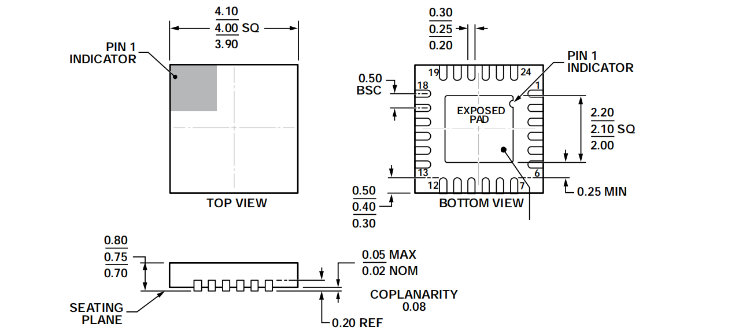

HT5700M Low Power HART Chip (Modem) Dimension:

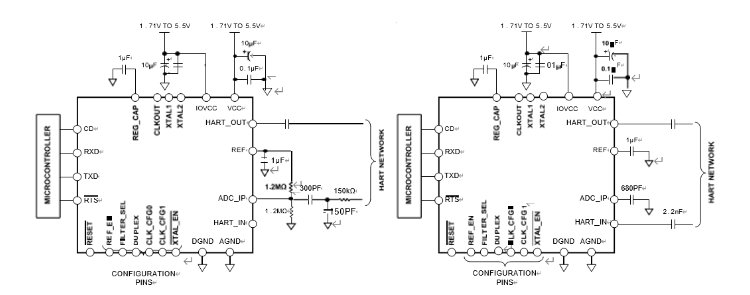

HT5700M Low Power HART Chip (Modem) Typical Connection Diagram for External and Internal Filter Options:
